ETL 210-WP


  • $55.00

…is designed with low EMI and specially equipped with a customized proprietary Hybrid IC for higher reliability and greater efficiency in usage. Compact and lightweight. Easy to install. Portable, allows flexibility in usage. Adjustable twin lamp allows flexibility in angle of projection.
Suitable for Shops, Supermarkets, Factories, Schools, Banks, Computer Rooms, Offices, Public Halls, Restaurants, Hospitals, etc..


Input Voltage : 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others
Battery : High Temp Rated Nickel Cadmium Cells 2.5V 2.5AH or others
Lamp Used : SMT White LED
Rated Period : > 3 hrs or others
Mode : Non-maintained
Operation Temperature : ta 40 °C
Charge Monitor : Super bright Green LED 5mm Ø
Recharge Period : 16 ~ 24 hrs
Emergency Luminance : 43 Lumen
Electromagnetic Field : 6.9m gause @ 0.1m
Charger : Hybrid controlled charger
Protection : Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit
Construction : Electrode galvanised sheet steel with epoxy powder coating, 20mm Ø K/O hole, Fire retardant ABS Lamp Head
Dimension : 185mm(L) x 185mm(W) x 215mm(H)
Packing : One unit per carton
Carton/Dimension : Double wall corrugated / 190mm(L) x 190mm(W) x 220mm(H)
Compliance : SS563-1:2010, SS563-2:2010/A1:2013, SSIEC60598-2-22:2016, SSIEC60598:Part 1:2016
Warranty : 1 Year

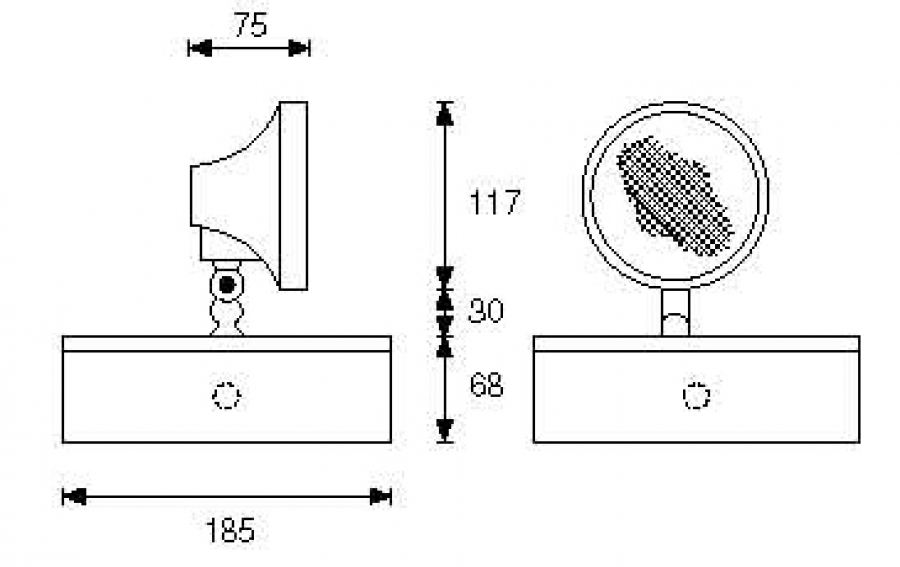

Diag-ESL 110
