…is designed an especially equipped with a customized proprietary Hybrid IC and a very high-efficiency built-in-current feed push-pull sine wave inverter prevent frequent blackening of the tube. Compact and lightweight.
Suitable for Factories, Schools, Sports Stadiums, Offices, Public Halls, Apartments, Warehouses, Carparks, etc..
Qty
| Input Voltage | : | 230Vac 50/60Hz ± 10% A: 0.02 PF: 0.6 |
| Battery | : | 2.4V 2.5AH/4.5AH High temp rated Nickel Cadmium cells or others |
| Lamp Used | : | Fluorescent tube 1 x 8W daylight 30cm |
| Rated Period | : | >1 hr, 2 hrs, 3 hrs or others |
| Mode | : | Non-maintained |
| Power Consumption | : | <1.7W |
| Operation Temperature | : | ta 40 °C |
| Charge Monitor | : | Super bright Green LED 5mm Ø |
| Recharge Period | : | 16 ~ 24 hrs |
| Emergency Luminance | : | 45 Lumen |
| Electromagnetic Field | : | 11.8m gause @ 0.1m |
| Charger | : | Hybrid controlled charger |
| Protection | : | Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit |
| Construction | : | Moulded Fire Retardant ABS base PC diffuser |

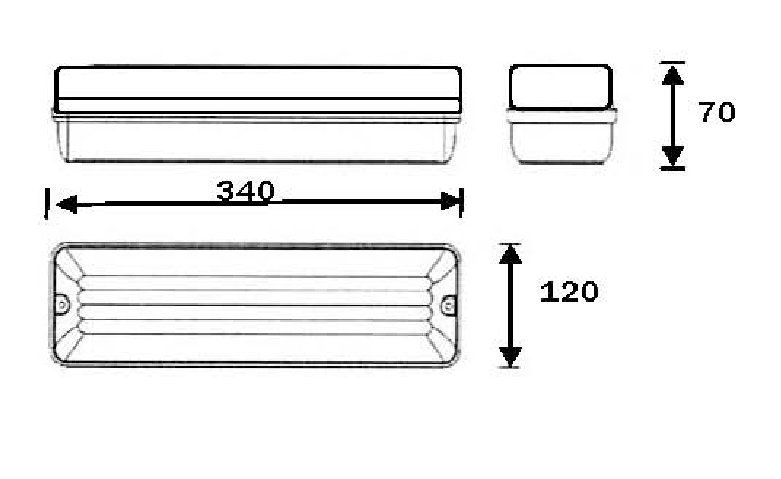

| Dimension | : | 340mm(L) x 70mm(W) x 120mm(H) |
| Weight | : | 1.40kg (Net) / 1.60kg (Gross) |
| Packing | : | One unit per carton |
| Carton/Dimension | : | Double wall corrugated / 360mm(L) x 85mm(W) x 130mm(H) |
| Compliance | : | SS263- Part-2: 1998/A2-2008, SS563-2-2010/ AS2013 |
| Warranty | : | 1 Year |
