… is designed and specially equipped with a customized proprietary Hybrid IC and a very high-efficiency current feed push-pull sine wave inverter, to fully utilize the battery power and to prevent the frequent blackening of the tube.
Compact and lightweight. Easy and fast installation with the thumb-press quick-lock fastening system cuts down installation/maintenance time drastically.
Suitable for Factories, Schools, Sports Stadiums, Banks, Offices, Public Halls, Hospitals, Apartments, Warehouses, Carparks, etc..
Qty
| Input Voltage | : | 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others |
| Battery | : | 2.4V 2.5Ah/4.5Ah High temp rated Nickel Cadmium cells or others |
| Lamp Used | : | Fluorescent tube 1 x 8W, 2 x 8W daylight |
| Rated Period | : | > 1 hr, 2 hrs, 3 hrs or others |
| Mode | : | Non-maintained |
| Operation Temperature | : | ta 40 °C |
| Power Consumption | : | < 1.7W |

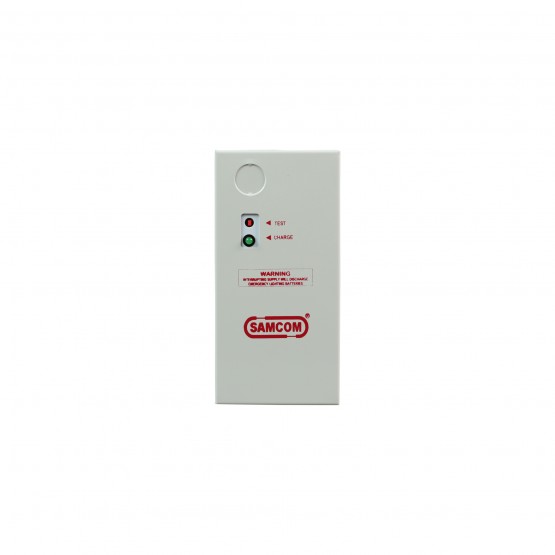

| Charge Monitor | : | Super bright green LED 5mm Ø |
| Recharge Period | : | 16 ~ 24 hrs |
| Emergency Luminance | : | 75 Im |
| Electromagnetic Field | : | 14.2m gause @ 0.1m |
| Charger | : | Hybrid controlled charger |
| Protection | : | Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit |

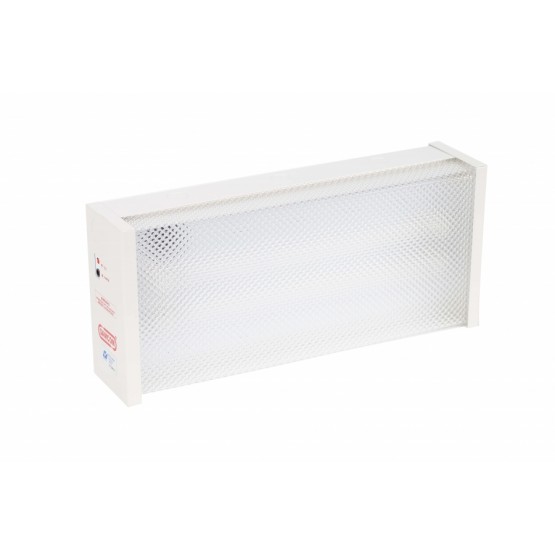

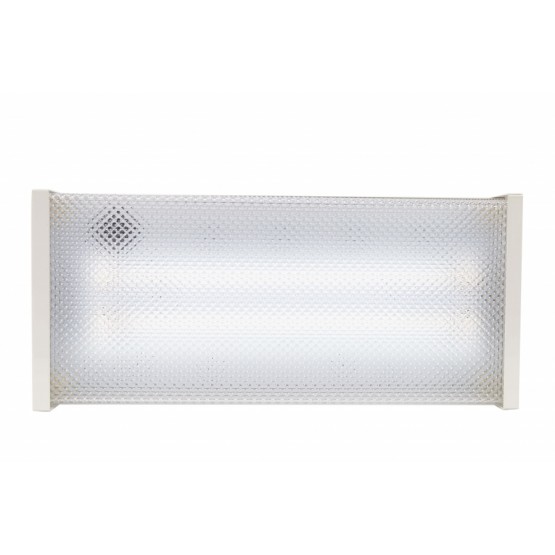

| Construction | : | Electrode galvanised sheet steel with epoxy powder coating. 20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser |

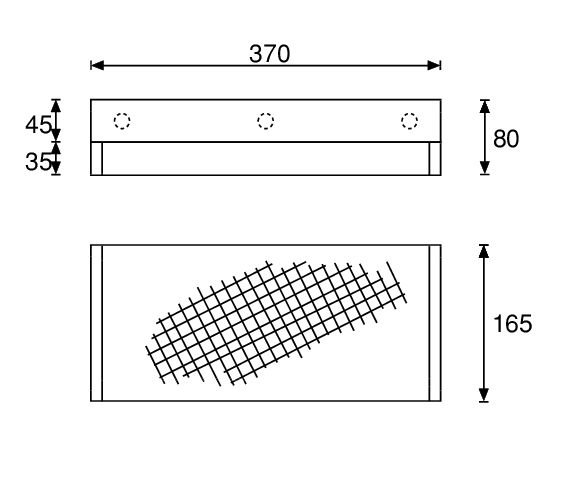

| Dimension | : | 370mm(L) x 80mm(W) x 165mm(H) |
| Weight | : | 1.94kg (Net) / 2.04kg (Gross) |
| Packing | : | One unit per carton |
| Carton/Dimension | : | Double wall corrugated / 390mm(L) x 100mm(W) x 185mm(H) |
| Compliance | : | SS263-2:1998/A2:2008, SS563-2-2010/A1:2013 |
| Warranty | : | 1 Year |
