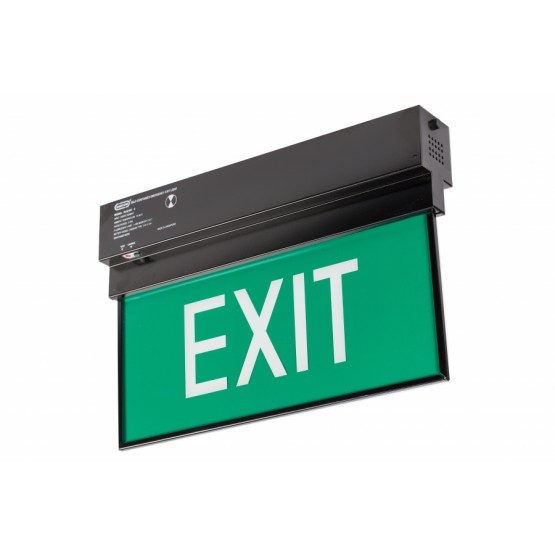

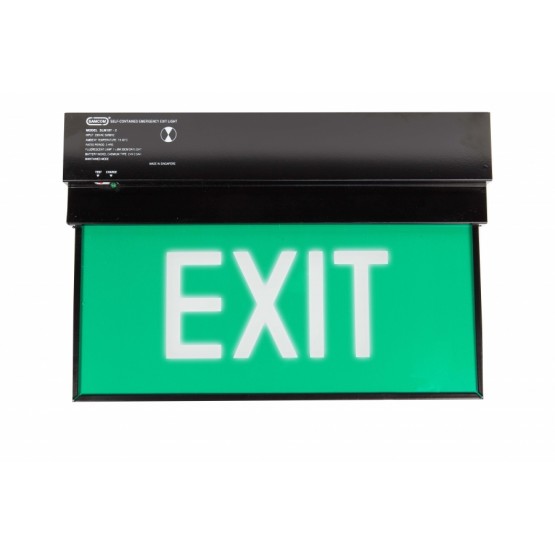

… is designed to be slim and lightweight, low EMI and specially equipped with a customized proprietary Hybrid IC and a very high-efficiency current feed push-pull sine wave inverter, to fully utilize the battery power and to prevent the frequent blackening of the tube. Easy and fast installation.
Suitable for Factories, Schools, Sports Stadiums, Banks, Club Houses, Hotels, Computer Rooms, Offices, Public Halls, Hospitals, Apartments, Warehouses, Carparks, etc..
Qty
| Input Voltage | : | 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others |
| Battery | : | 2.4V 2.5Ah/4.5Ah High temp rated Nickel Cadmium cells or others |
| Lamp Used | : | Fluorescent tube 1 x 8W daylight 30cm |
| Rated Period | : | > 2 hrs, 3 hrs or others |
| Mode | : | Maintained |
| Operation Temperature | : | ta 40 oC |
| Power Consumption | : | 16.2W |
| Charge Monitor | : | Super bright green LED 5mm Ø |
| Recharge Period | : | 16 ~ 24 hrs |
| Emergency Luminance | : | > 8 cd/m2 |
| Electromagnetic Field | : | 9.5m gause @ 0.1m |
| Charger | : | Hybrid controlled charger |
| Protection | : | Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit |
| Construction | : | Electrode galvanized sheet steel with epoxy powder coating. 20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser |
| Dimension | : | 395mm(L) x 60mm(W) x 267mm(H) |
| Weight | : | 2.68kg (Net) / 2.78kg (Gross) |
| Packing | : | One unit per carton |
| Carton/Dimension | : | Double wall corrugated / 415mm(L) x 70mm(W) x 295mm(H) |
| Compliance | : | SS563-1:2010, SS563-2-2010/A1: 2013 |
| Warranty | : | 1 Year |
| Accessory | : | Wall mounting bracket (for single face) |
| Weight | 2.682.78 kg |
|---|
