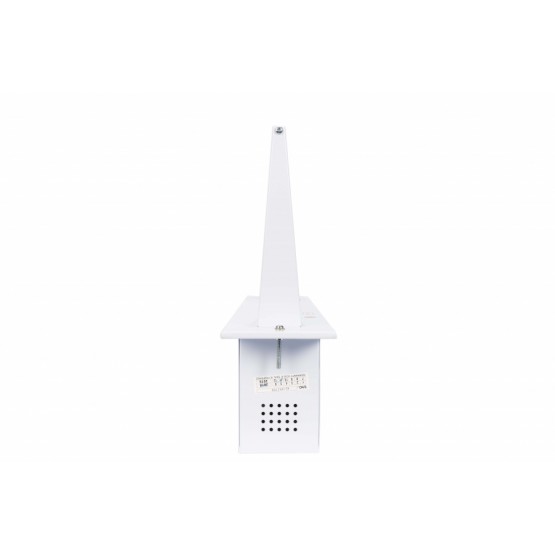

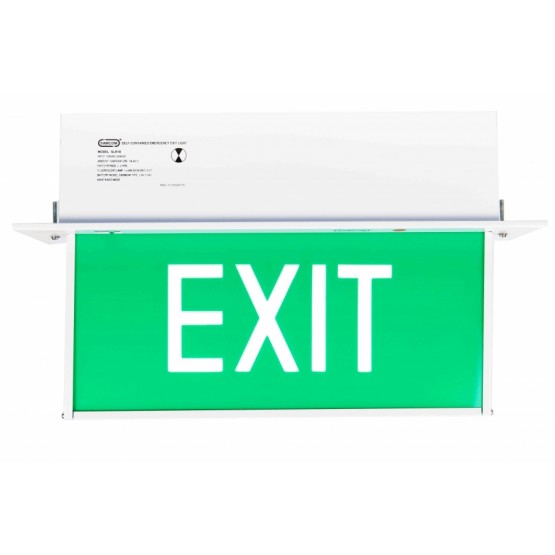

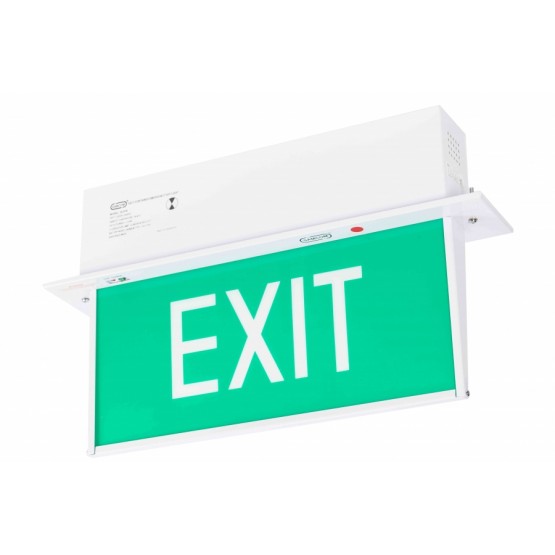

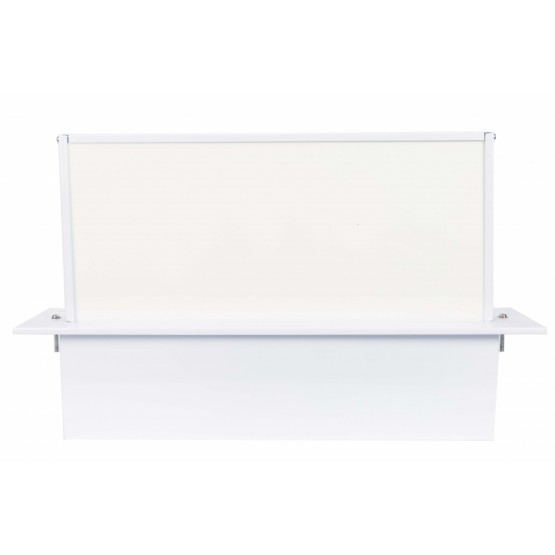

Hybrid IC Controlled Self-Contained Emergency Lighting
Fluorescent Luminaire (Recess Mounting)
…… is design to be slim and lightweight and specially equipped with a customized proprietary Hybrid IC and a very high-efficiency current feed push-pull sine wave inverter, to fully utilize the battery power and to prevent the frequent blackening of the tube.
Suitable for Shopping Centres, Malls, Restaurants, Offices, Markets, Hospitals, etc..
Qty
| Input Voltage | : | 230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others |
| Battery | : | 2.4V 2.5AH/4.5AH High temp rated Nickel Cadmium cells or others |
| Lamp Used | : | Fluorescent tube 1 x 8W daylight 30cm |
| Rated Period | : | > 1 hr, 2 hrs, 3 hrs or others |
| Mode | : | Maintained |
| Operation Temperature | : | ta 40 °C |
| Power Consumption | : | 16.2W |
| Charge Monitor | : | Super bright green LED 5mm Ø |
| Recharge Period | : | 16 ~ 24 hrs |
| Emergency Luminance | : | > 8 cd/m2 |
| Electromagnetic Field | : | 6m gause @ 0.1m |
| Charger | : | Hybrid controlled charger |
| Protection | : | Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid control circuit |
| Construction | : | Electrode galvanised sheet steel with epoxy powder coating. 20mm Ø K/O hole, Fire Retardant Acrylic Opal diffuser |

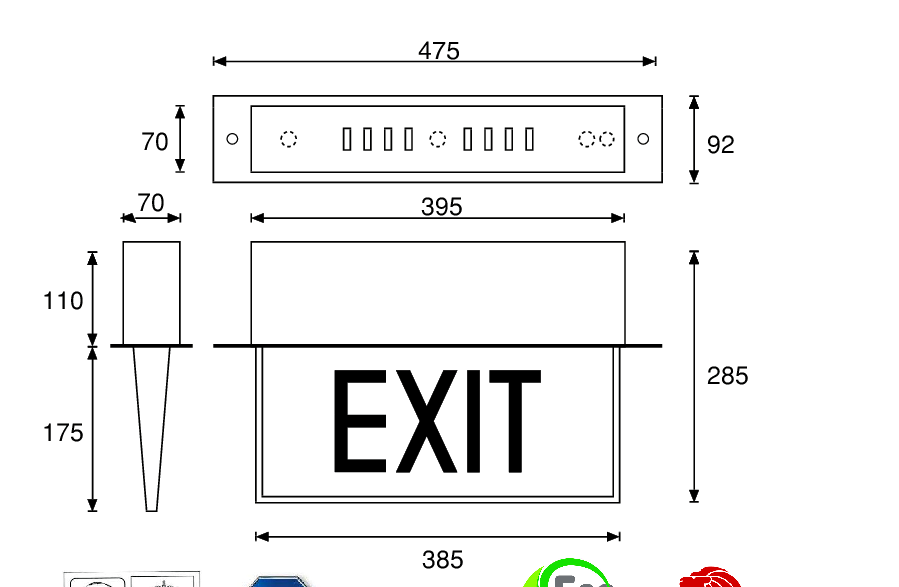

| Dimension | : | 475mm(L) x 92mm(W) x 285mm(H) |
| Weight | : | 2.64kg(Net) / 2.74kg(Gross) |
| Packing | : | One unit per carton |
| Carton/Dimension | : | Double wall corrugated / 495mm(L) x 105mm(W) x 310mm(H) |
| Compliance | : | SS563-1:2010, SS563-2-2010/A1:2013 |
| Warranty | : | 1 Year |
