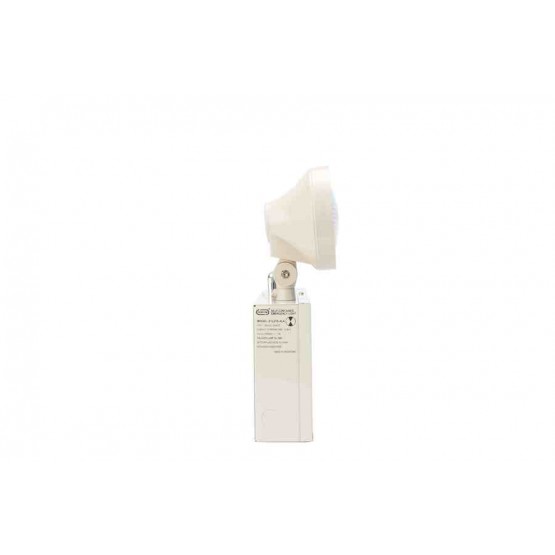

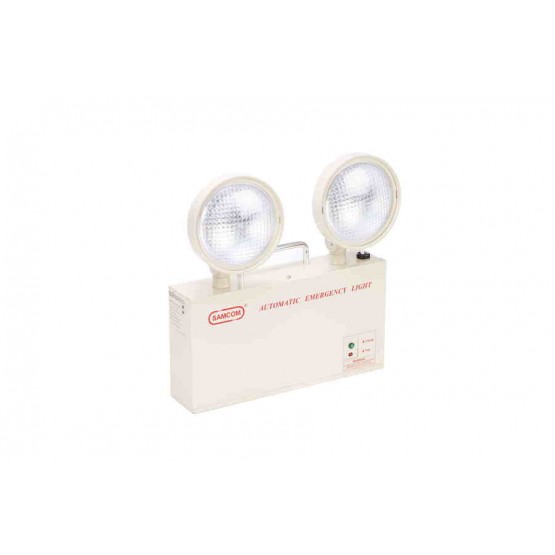

ETL 210

High-performance, self-contained emergency fluorescent luminaire featuring a proprietary Hybrid IC control system and a high-efficiency current feed push-pull sine wave inverter. Engineered to fully utilize battery power and prevent tube blackening, it provides reliable, uniform illumination. Its compact, lightweight design and thumb-press quick-lock fastening system drastically reduce installation and maintenance time in commercial and industrial environments.

DOWNLOAD PDF

$50.00

Input Voltage

230Vac 50/60Hz ± 10% or 115Vac 50/60Hz ± 10% or others

Battery

6.0V 4.5Ah Sealed Lead Acid or others

Lamp Used

2 x 10W Halogen

Rated Period

> 1 hr, 2 hrs ± 10% or others

Mode

Non-Maintained

Operation Temperature

ta 40 °C

Power Consumption

5.3W

Charge Monitor

Super bright green LED 5mm Ø

Recharge Period

16 ~ 24 hrs

Emergency Luminance

86 lm

Electromagnetic Field

17m gauss @ 0.1m

Charger

Hybrid controlled charger

Protection

Low volt cut-off to prevent battery over discharge. Incoming AC fuse and Battery DC fuse. Tropical climate protection coating on hybrid circuit

Construction

Electrode galvanised sheet steel with epoxy powder coating 20mm Ø K/O hole. Fire retardant ABS lamp head

Classification

Co/A16, C90/A16

Dimension

285mm(L) x 95mm(W) x 310mm(H)

Weight

2.9kg (Net) / 3.0kg (Gross)

Packing

One unit per carton

Carton / Dimension

Double wall corrugated / 310mm(L) x 100mm(W) x 335mm(H)

Compliance

SS263:Part 2:1998/A2:2008, SS563-2:2010/A1:2013

Warranty

1 Year

ETL 210

Precision. Protection. Performance.
